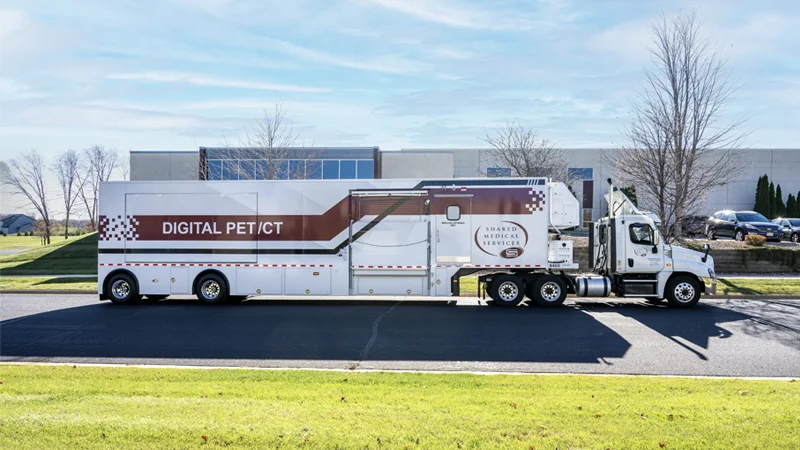

Mobile PET/CT Imaging

Available configurations

• Omni Legend 16: 16 cm PET axial field of view; NEMA sensitivity 11.8 cps/kBq.
• Omni Legend 21: 21 cm PET axial field of view; NEMA sensitivity 21 cps/kBq.
• Omni Legend 32: 32 cm PET axial field of view; NEMA sensitivity 46 cps/kBq.
• CT on all three configurations: 64 channels, 128 slices, 40 mm detector coverage, and 0.4-second rotation. The 16, 21, and 32 model numbers describe PET coverage in centimeters, not CT slice counts.
• Clinical configurations: oncology and cardiac-equipped versions are available for each PET coverage size. Confirm cardiac hardware, software, and Precision DL availability for the assigned unit.

Software and features

• Precision DL: deep learning-based PET image processing on select units
• Q.Clear: full-convergence iterative PET reconstruction
• MotionFree: deviceless respiratory motion correction
• Q.Static: quiescent-phase gating
• ASiR-V: CT dose reduction of 50 to 82%, per GE HealthCare
• Smart MAR metal artifact reduction and low-dose lung screening

Features vary by configuration.

Available configurations

• CT configuration: Optima CT540 with 16 acquisition channels, a 24-row detector, and 20 mm detector coverage.
• PET configuration: three PET rings with 15 cm axial field of view.

Software and features

• VUE Point HD: fully 3D iterative reconstruction with detector modeling
• Q.Check: saves quantitative imaging parameters, including blood glucose, with each study
• Optima CT540 CT platform
• RTP flat tabletop for radiation therapy planning

Available configurations

• CT configuration: 64 slices, 0.30-second rotation, and an 80 kW generator.
• Cardiac-equipped configuration: PET cardiac gating, dynamic cardiac acquisition, and an ECG module. Confirm the assigned unit’s cardiac package.
• Patient capacity: 78 cm bore and a 500 lb maximum patient table load.

Software and features

• ultraHD.PET: time of flight combined with measured point spread functions
• Cardiac package: PET cardiac gating, dynamic imaging, and ECG module
• Simultaneous reconstruction during acquisition, so the next exam starts sooner
• iMAR: metal artifact reduction
• Dynamic list-mode acquisition

Available configurations

• Shared scanner configuration: 18 cm PET axial field of view, 239 ps time of flight, and 64-slice CT with 0.5-second rotation.
• Clinical configurations: oncology/neurology and cardiac-equipped versions. The cardiac package adds PET cardiac gating, dynamic acquisition, and ECG hardware.

Software and features

• FlowMotion AI: automated, personalized protocol planning
• FlowMotion: continuous bed motion
• ultraHD.PET and iMAR metal artifact reduction
• myExam Companion: automated workflows from setup to results
• SAFIRE and Tin Filter for CT dose reduction
• MI Cardio package on select units

Features vary by configuration.

Available configurations

• Shared scanner configuration: three PET rings, 4 mm LSO crystals, 16-slice CT, a 70 cm bore, and a 500 lb table limit.
• Clinical configurations: oncology and oncology/cardiology/neurology versions. Cardiac-equipped units add an ECG monitoring module, cardiac gating, and dynamic PET acquisition.

Software and features

• HD PET: point spread function modeling for sharper detail
• iMAR: metal artifact reduction for patients with implants
• Cardiac package: ECG-gated PET with simultaneous replay on select units
• Radiation therapy planning cradle overlay

Features vary by configuration.

Available configurations

• Shared scanner configuration: 24 cm PET axial field of view, 80-slice CT, 2.9 mm NEMA spatial resolution, and 11 cps/kBq NEMA sensitivity.
• Clinical configurations: oncology and oncology/cardiology/neurology versions. Cardiology configurations include a wireless vital signal monitor; confirm the assigned unit’s hardware and software.

Software and features

• HYPER UVP and HYPER UVT: point spread function and time-of-flight reconstruction
• LYSO crystals with constant-temperature cooling
• Wireless vital signal monitor on cardiology units
• uCare.iQC: intrinsic quality control
• 70 cm bore CT with 0.25 mm isotropic resolution

Features vary by configuration.

Available configurations

• Scanner configuration: 24 cm PET axial field of view, 219 ps timing resolution, 11 cps/kBq sensitivity, and 160-slice CT.
• CT hardware: 40 mm axial coverage, 0.3-second rotation, a 7.5 MHU-equivalent tube, and a 100 kW generator.
• Patient capacity: 70 cm bore and a 617 lb maximum patient weight. Confirm clinical applications and gating options for the assigned unit.

Software and features

• Digital LYSO crystals and SiPM detectors with temperature-controlled cooling
• HYPER advanced reconstruction algorithms
• 160-slice CT with a 7.5 MHU tube and 100 kW generator
• 0.3 s CT rotation

Available configurations

• PET configuration: 27 cm axial field of view, 239 ps time of flight, digital SiPM detectors with one-to-one crystal coupling, and air cooling.
• CT configuration: 40 channels, 80 slices, 40 mm detector coverage, 0.35-second rotation, and a 60 kW generator.
• Patient capacity: 78 cm bore and a 485 lb maximum table load.

Software and features

• Digital SiPM detectors with one-to-one crystal coupling
• Fast time-of-flight resolution
• Up to 50% dose reduction, per Canon
• 80-slice CT with 0.35 s rotation
• Air-cooled design

Part of our interim fleet.
